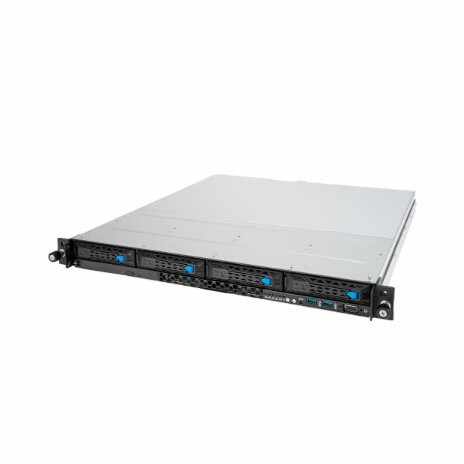

ASUS LGA1200 (Xeon E-23xx), C252, 4DIMM, 3PCIe, 4x3.5" HS HDD, M.2, 2x 1Gb, IPMI, 350W
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Byl jsem spokojený doporučuji

Ověřený zákazník

ASUS LGA1200 (Xeon E-23xx), C252, 4DIMM, 3PCIe, 4x3.5" HS HDD, M.2, 2x 1Gb, IPMI, 350W

Processor / System Bus 1 x Socket LGA1200 Intel® Xeon® processor E-2300 family Intel®  Pentium™ processors *Refer to support page for more information Generation E11 Core Logic Intel® C252 Chipset Memory Total Slots: 4 (2-channel) Capacity: Maximum up to 128GB UDIMM Memory Type:…
Kód: 3643255PN: 90SF01Y1-M00050Výrobce: ASUSZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.Více informací…
28 599   včetně DPH
Cena bez DPH: 23 636 Kč
Běžná maloobchodní cena: 36 815 Kč
Ušetříte 8 216 Kč (22,32 %)
Cena po registraci:
28 499 Kč
Cena bez DPH: 23 553 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)28.5. / ZDARMA!
Přepravní službou (ČR)30.5. / od 190 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.
Toto zboží je možné koupit pouze na IČ.

Popis produktu

  • Processor / System Bus

    1 x Socket LGA1200
    Intel® Xeon® processor E-2300 family
    Intel® Pentium™ processors
    *Refer to support page for more information
  • Generation

    E11
  • Core Logic

    Intel® C252 Chipset
  • Memory

    Total Slots :
    4 (2-channel)
    Capacity :
    Maximum up to 128GB UDIMM
    Memory Type :
    DDR4 3200/2933/2666 UDIMM
    Memory Size :
    32GB, 16GB, 8GB, 4GB UDIMM
    * Refer to support page for more information
  • Expansion Slots

    Total PCI/PCI-X/PCI-E/PIKE Slots: 3 1 x PCI-E x 16 (Gen4 x16 Link, switch to x8 link when slot B occupied), FH/HL 1 x PCI-E x 8 (Gen4 x8 Link), HH/HL* 1 x PCI-E x 4 (Gen3 x4 Link), Proprietary R/A slot (optional for Intel X710 10G LAN card) * not available when supporting NVME SSD
  • Storage

    Storage Controller :
    Intel® C252 Chipset
    6 x eSATA 150/300 MB/s ports
    Intel®VROC (For Linux/Windows)
    (Support Software RAID 0/1/5/10 )
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
  • HDD Bays

    4 x 3.5” Hot-Swap HDD Bays -up to (2*SATA/SAS/NVMe + 2*SATA/SAS) *SAS support only from optional SAS HBA/RAID card *NVMe support only from optional NVMe upgrade kit
  • Auxiliary Storage FDD/CD/DVD

    1 x Slim-type Optical Drive Bay Options: No Device / DVD-RW / DVD-ROM
  • Networking

    2 x Intel® I210AT + 1 x Mgmt LAN
  • Graphic

    Aspeed AST2600 with 64MB VRAM
  • Multi-GPU Support

    Please find the latest GPU support from https://servers.asus.com/support/gpu
  • Front I/O Ports

    1 x VGA port* 2 x USB 3.2 Gen1 ports *Must support by ASMB10
  • Rear I/O Ports

    2 x USB 3.2 Gen 2 ports 1 x VGA port * 1 x HDMI port from CPU 1 x COM port 2 x RJ-45 ports 1 x RJ-45 ports (One for ASMB10-iKVM)(Optional) *Must support by ASMB10
  • Switch/LED

    Rear Switch/LED: 1 x Q-Code/Port 80 LED 1 x Power switch Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-2 LED
  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os
  • Management Solution

    ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet
  • Regulatory Compliance

    BSMI, CE, FCC(Class A)
  • Dimensions

    497mm x 439.5mm x 44mm
  • Power Supply

    Single 350W 80 PLUS Gold Power Supply
    Rating: 100-240Vac, 6.3-3A 60-50Hz, Class 1
  • Environment

    Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing)


  • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
  • The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
  • The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.

Parametry

Provedení serveruStandardní rackový server
